QC-557 Short Extensometer

Send us an Inquiry

Description

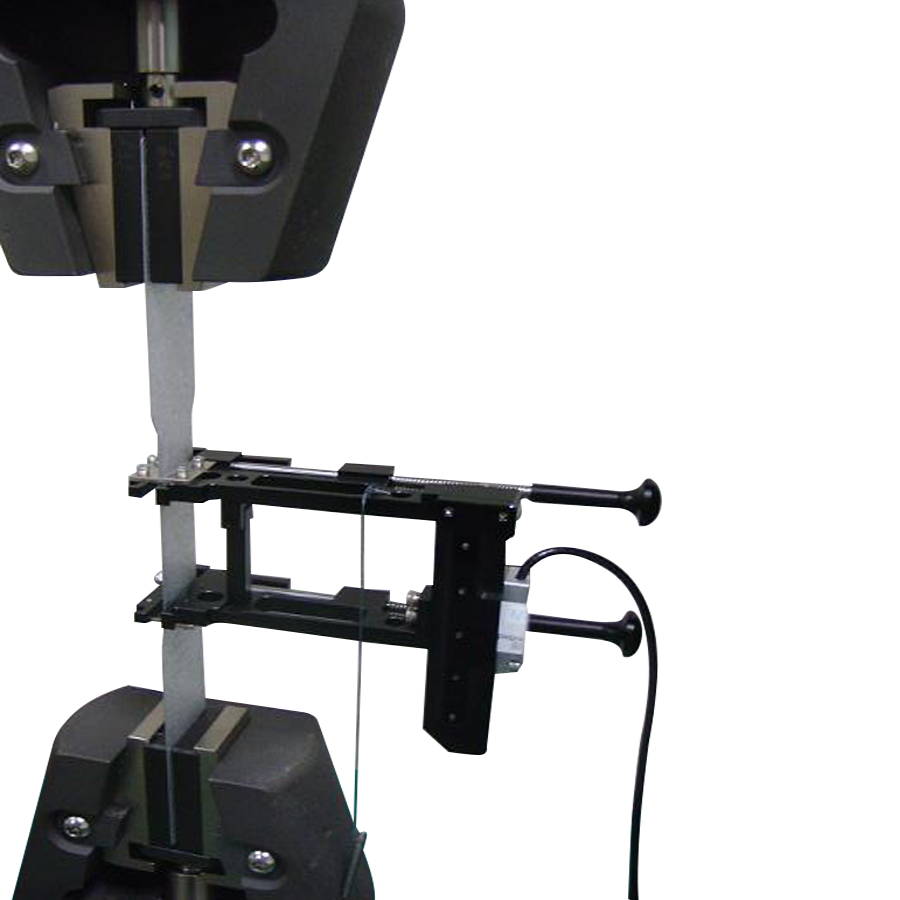

QC-557 Short extensometer can measure metal, hard plastic of less than 50% elongation of material deformation. During test, it can measure complete test deform rate and do not dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.

Conform to Standards

  • ASTM E83

Industry

Metal、Plastic

Testing Video


QC-557短延伸器應用

Specifications


Gauge Length

25mm/50mm(switchable two gauge length)

Max. Stroke

25mm

Elongation

100%(at 25mm)/50%(at 50mm)

Suggested Test Range

0.5%~50%

Temperature for Using

0°C~70°C

Specimen Size

Flat specimen 0~22mm
Rod specimen Ø6~22mm

Resolution

0.5μm

Max Output Frequency

65KHZ

Input Voltage

DC5V±5%

Weight

200g

Feature

1. The solid and stable contruct improve the usage safety; can break the specimen while tensiling and do not need to be removed during test.
2. Able to switch the gauge length(25mm/50mm)
3. Mechanism for clamping force adjustment; prevents specimen slippage
4.Jaw face available for flat and rod specimen
5. Deliveredwith factory calibration report
6. Able to connect with other brands' machine.

Related Machines


Related Grips


H Series

READ MORE
Appearance Name Model Capacity Specimen size Min. load cell Temp. limit Weight Jaw face width Jaw face type Detail

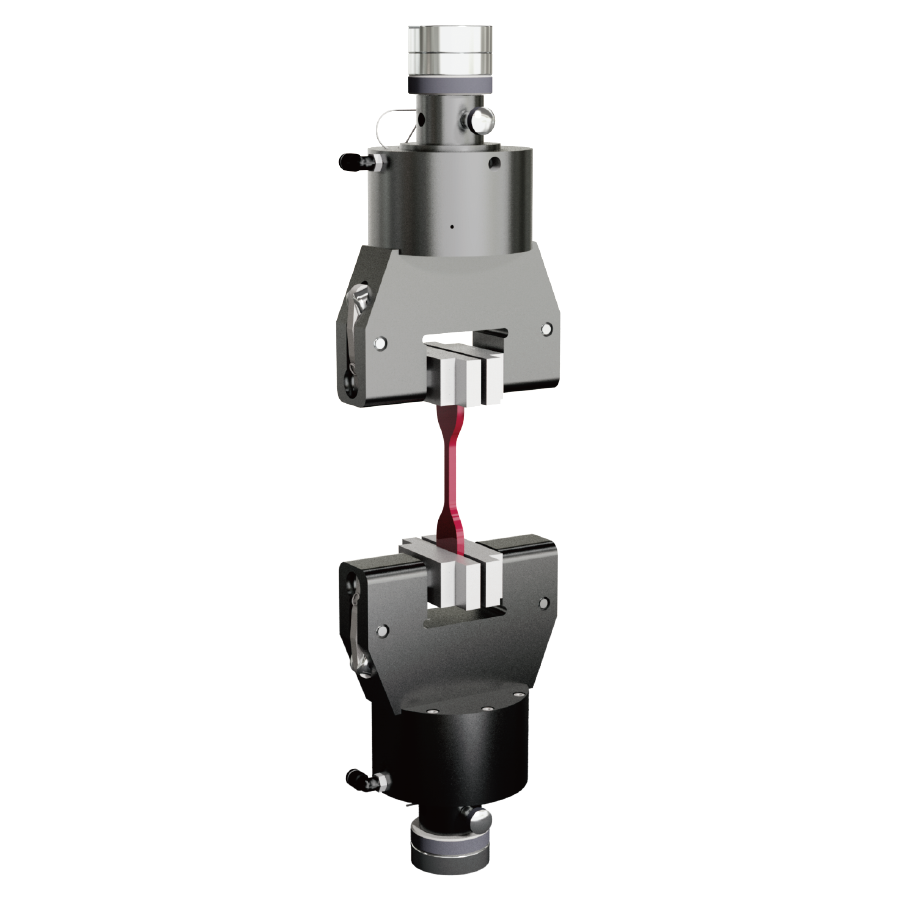

Pneumatic Grip - Serrated Jaw Face GR-H13A~C 1kN thickness 0.1~12mm 200N -10~60°C 3226g/pc A: 76.2mm | B: 50.8mm | C: 25.4mm Metal cross pattern

F Series

READ MORE
Appearance Name Model Capacity Jaw face width Min. load cell Temp. limit Weight Specimen Size Detail

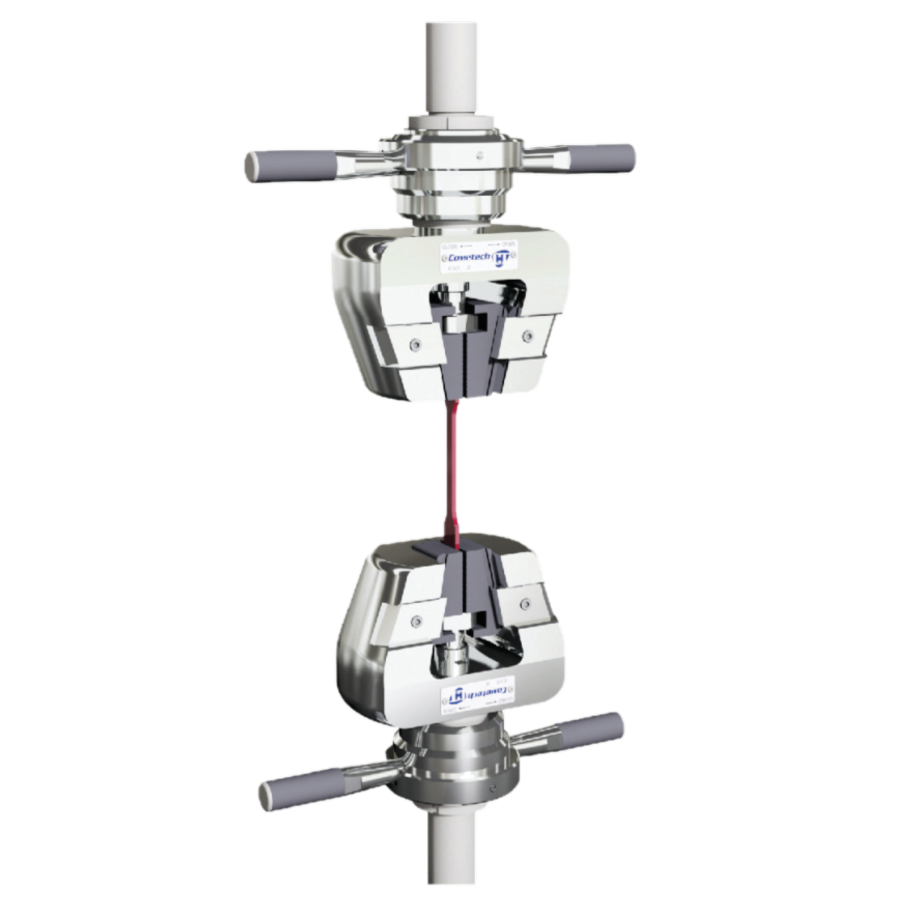

Wedge Grip GR-F040 200kN 46mm 20kN -10~200°C 19150g/pc Grip Surface A thickness 0.5~11mm Grip Surface B thickness 10~19mm Grip Surface C thickness 19~30mm Grip Surface F diameterØ 9~17mm Grip Surface G DiameterØ 16~25mm Grip Surface H DiameterØ 24~33mm
