Description

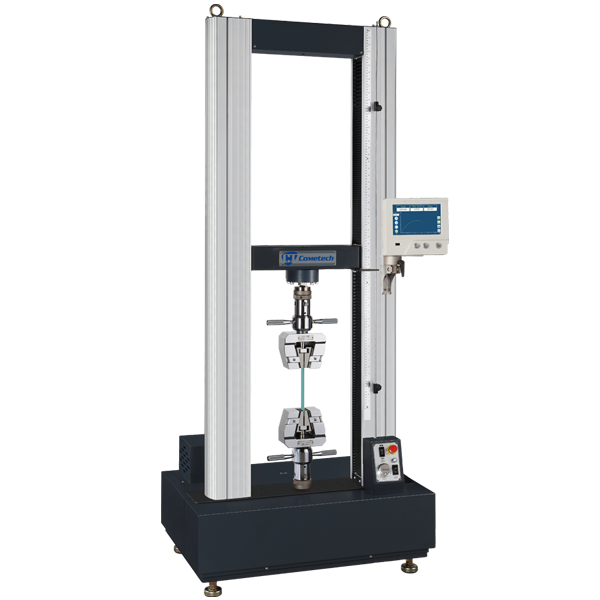

Universal Testing Machine QC-505M1F is with a max. capacity of 50kN. The tensile testing machine provides a stable test situation because of the high stiffness construction and the maintenance-free transmission mechanisms of the servo motor. The standardized machine design supports different kinds of tests with expandable accessories, meanwhile, it provides users a quiet testing environment and high precision test results.
The M1F software of the universal testing machines is compatible with Windows system and is able to analyze tests such as tensile, compression, bending, peeling, tearing strength, etc. The software is user-friendly and available in many languages and units (metric or imperial); it shows integrated test data in real-time graph and test report for a complete analysis. The display panel of universal tensile testing machine is an optional accessory that can capture useful information rapidly.
Conform to Standards
- ISO 7500-1
- ASTM E4
- ASTM D-76
- DIN 5122
- JIS B7721
- JIS B7733
- BS EN 1002-2
- BS 1610
- GB/T T228
- ASTM D6241
- EN 10002
- ASTM A370
- ASTM D4595
Industry
Plastic, Textile, Metal, Construction and others
Application
ASTM D790, ISO 178 Bending test
ASTM D638 Plastic Tensile Test
ASTM D3787 | ASTM D6797 Textile Puncture Testing
Catalog Download
QC-505M1F Universal Materials Testing Machines
Testing Video
Specifications
Max. Capacity
50kN
Force Resolution
1/50,000(31 bits)
Test stroke(w/o grip)
1100mm
Speed Range
0.2~600 mm/min
Data Sampling Rate
Max. 400Hz
Motor
Servo Motor
Feature
1.Equipped with jog controller to adjust displacement precisely
2. Optional anti-collision function for protecting loadcells
3.Loadcell automatic reading, calibrated without installed on machine
Dimension
90 x 60 x 195 cm
Weight
280 kg
Accessories
Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7. Various machine shutdown conditions setting (force, displacement, time, elongation).
8. Can be restored to the original factory state.
9. Unit selection can be Metric unit, Imperial units.
10. Over-travel, overload protection and overtime machine stop
11. Can store up to 50 data, USB storage data function.
12. Support multiple sets of signal sources.
QC-551 Long Extensometer
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
Software functions
1.It is operated by keyboard and mouse; grip position is controllable by up/down button.
2.Adjustment of X-Y axis on the graph: curve’s point marking, interval, slope, etc.
3.Different test patterns available: Hold tensile, special setting of grip movement.
4.TCP/ IP interface ( two-way transmission). Machine can be controlled by PC.
5.Test setting can be saved as module to reduce mistake and errors.
6.Available in Chinese, English, Japanese, Korean, Spanish, Polish.
7.Multiple test data can be shown simultaneously on the software.
8.Tensile, compression, bending, peeling, spring tests available.
9.The software can show data, graphs or both at the same time.
10.Compatible with Window 7/8/10
11.Sampling rate up to 400Hz
12.The software supports various I/O signals
13.Unit can be chosen between metric or imperial
14.The data table can be modified based on user’s preference
15.Data can be renamed and formula can be created
16.Data processing: store, call, list, statistical comparison, etc.
17.Protection from excessive test stroke, capacity and time
18.Sample specification can be saved as module for quick use.
19.Upper and lower limits can be selected to access key data.
