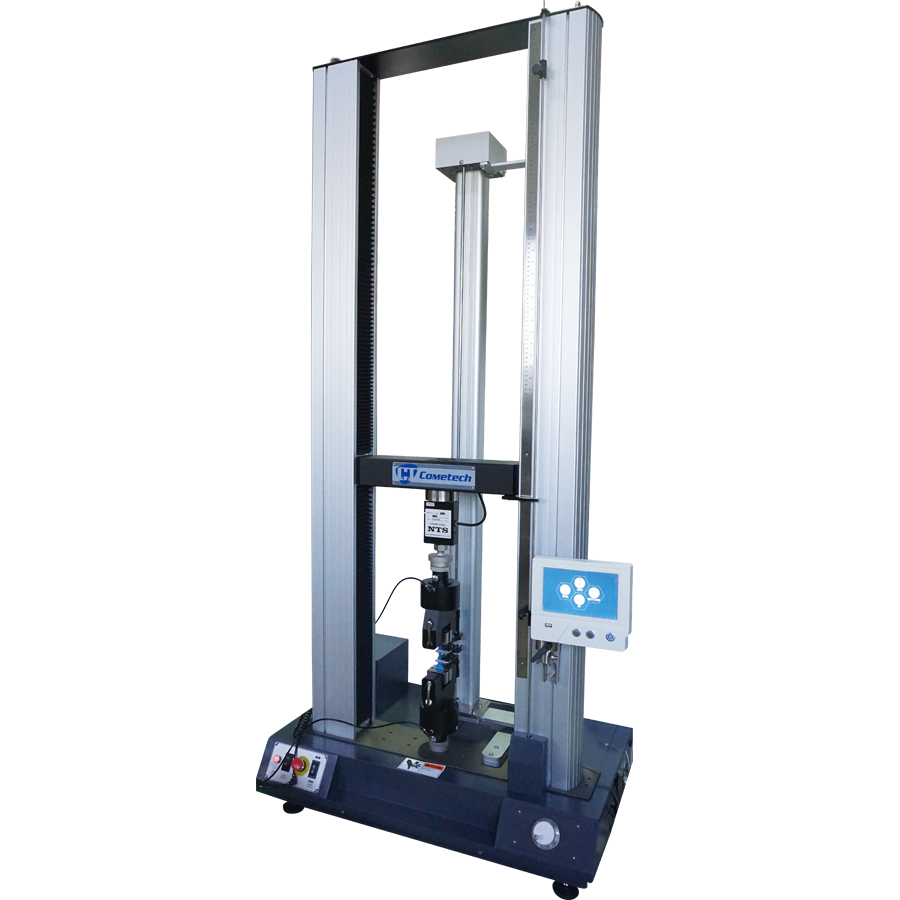

Long Extensometer QC-548M1F Two column type machine with long extensometer

QC-551
Long Extensometer

Send us an Inquiry

Description

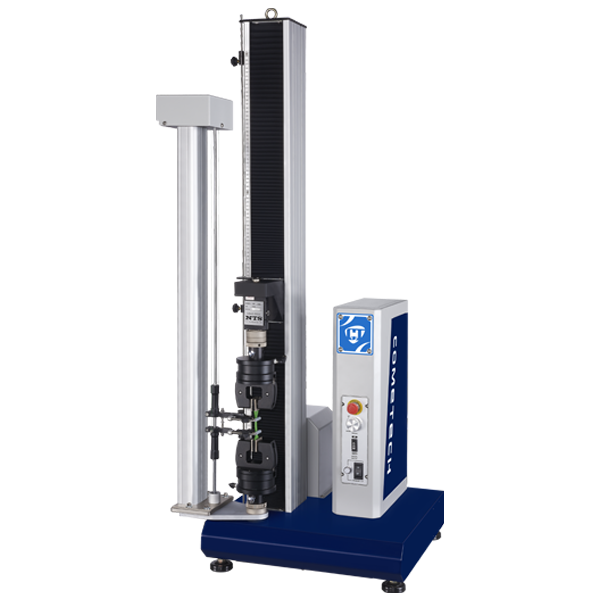

Long extensometer is suitable for elongation higher than 20% of elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen is usually made into dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.

Specifications


Gauge Length (mm)

15-100mm (adjustable)

Type

S: Standard / L: Extended

Resolution

0.0125mm

Test Stroke

700mm / 1100mm

Thickness of Specimen

0 ~ 10mm

Mounting Type

Fixed Bracket / Revolving Bracket

Weight

8.6Kg

Related Machines


Related Grips


A Series

READ MORE
Appearance Name Model Capacity Jaw face width Specimen size Min. load cell Temp. limit Weight Detail
Eccentric Grips GR-A030 2kN 52mm thickness0.2~4mm 200N -10~200°C 1143g/pc

D Series

READ MORE
Appearance Name Model Capacity Jaw face width Specimen size Min. load cell Temp. limit Weight Jaw face type Detail

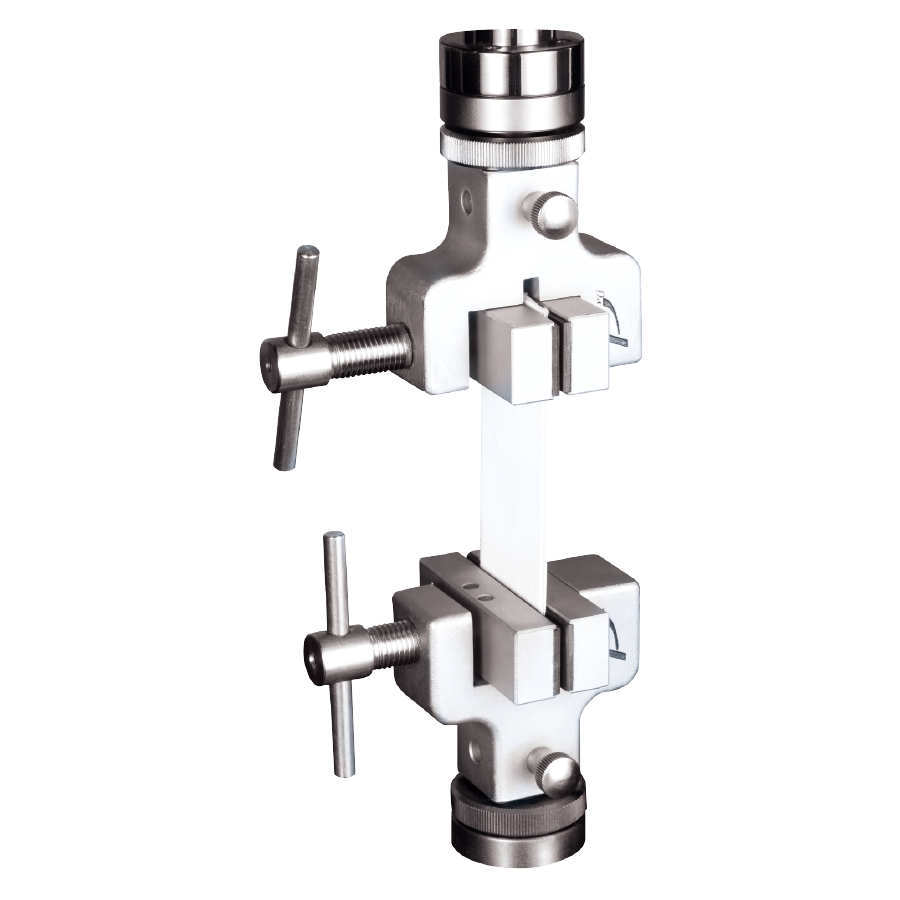

Vice Action Grip - Rubber Face GR-D01D~F 2kN D: 76.2mm | E: 50.8mm | F: 25.4mm Thickness0.2~4mm 200N -10~100°C 1600g/pc soft rubber mat

F Series

READ MORE
Appearance Name Model Capacity Jaw face width Min. load cell Temp. limit Weight Specimen Size Detail
Wedge Grip GR-F010 10kN 30mm 1kN -10~200°C 5375g/pc Grip Surface A: thickness 0.1~10mm Grip Surface B: thickness 9~18mm Grip Surface F: diameter Ø 6~14mm Grip Surface G: diameter Ø 13~20mm - -
