Product Grips F Series

GR-F040

Wedge Grip

Inquire this model

Description

Capacity

200kN

Jaw face width

46mm

Min. load cell

20kN

Temp. limit

-10~200°C

Weight

19150g/pc

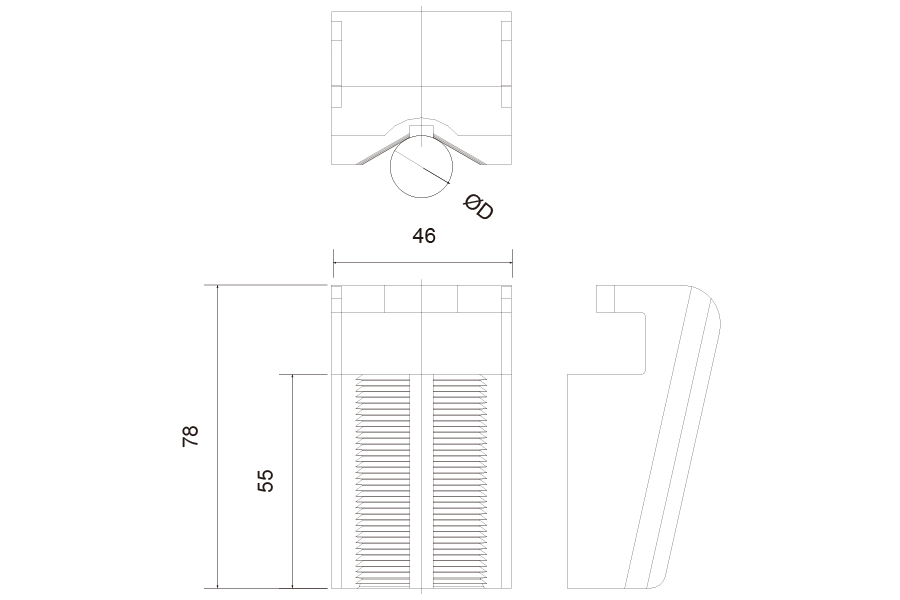

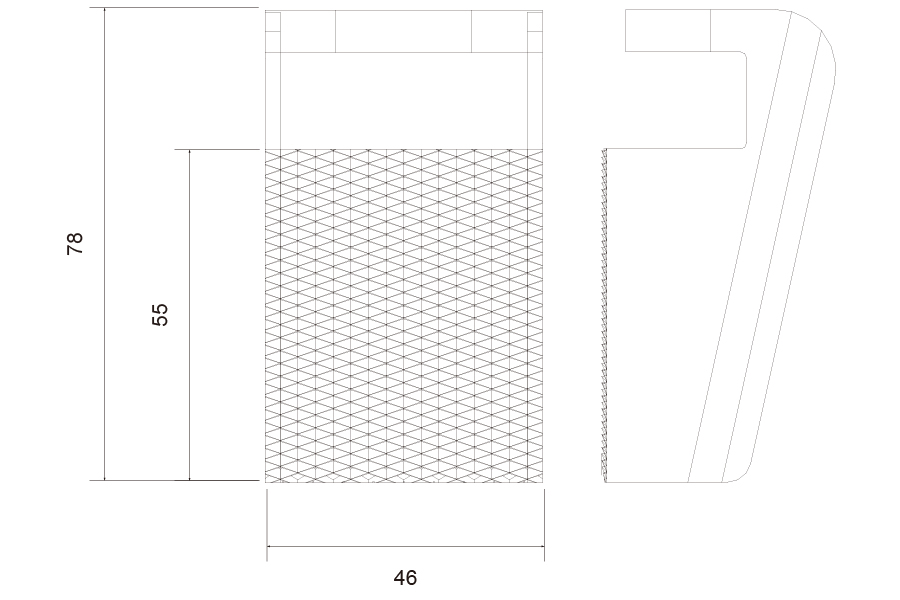

Specimen Size

Grip Surface A thickness 0.5~11mm

Grip Surface B thickness 10~19mm

Grip Surface C thickness 19~30mm

Grip Surface F diameterØ 9~17mm

Grip Surface G DiameterØ 16~25mm

Grip Surface H DiameterØ 24~33mm

Industry

A/B/C Grip Surface suited for strings, board testing。
F/G/H grip surface suited for metal round bar、plastic round bar、round bar or tube specimen。
