Product Grips H Series

GR-H13A~C

Pneumatic Grip - Serrated Jaw Face

Inquire this model

Description

Capacity

1kN

Specimen size

thickness 0.1~12mm

Min. load cell

200N

Temp. limit

-10~60°C

Weight

3226g/pc

Jaw face width

A: 76.2mm | B: 50.8mm | C: 25.4mm

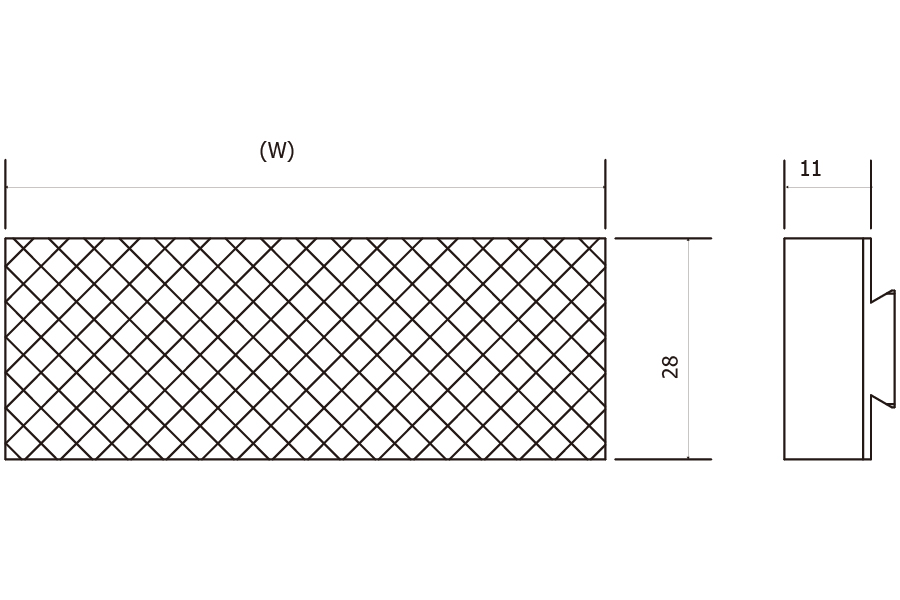

Jaw face type

Metal cross pattern

Industry

Suited for textile、paper、leather、rubber and plastic plates

Application

ASTM D882　 Film Tensile Test
