Universal Material Testing Machine QC-548D2 is a table-type UTM with a standard 7" color touch TFT display panel for stand-alone operation. D2 system can add the portable printer to print out test results directly, which is suitable for production line or a quick test required.
The DC motor of the tensile testing machine can act similar to a servo motor by the special control of the motor and algorithm, which is able to correct the rotation speed to reach its best speed performance during the movement. The digital speed setting and one key start test function improve the convenience and efficiency of operation.
Users can do tensile test, compression test, , peeling test, adhesion test, tearing test etc., and display different languages, units switching between Imperial and Metrics by connecting the dedicated software on a PC. The software of the universal tensile testing machine can also provide users complete analysis functions and test modules. This tester is also widely use as textile testing equipment, fabric testing machine, single yarn test machine, tape tester.
Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Packaging, Health Care, and Construction Industry
ASTM D882 Film Tensile Test
ASTM D638 Plastic Tensile Test
ASTM D412 Rubber Tensile Test
ASTM D1000 ASTM D3330 Tape Peeling Test

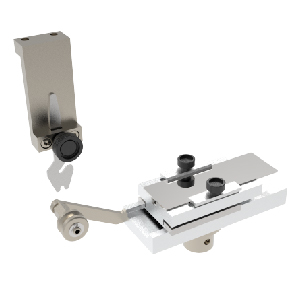

ASTM D1894 Coefficient of Friction Test
ISO 13934-1 Tensile properties of fabrics
Top Load Testing
Test Solutions for Bottle Industry
QC-548D2-S Digital type Materials Testing Machines
ASTM D412 by D1 Display
5kN
1/10000(23 bits)
400mm
1.0-550.0 mm/min
Max. 1200Hz
DC Motor
50 X 50 X 105 cm
65 kg
1. Loadcell automatic reading, can be calibrated without installed on machine
2. Standard display for quick operation
3.Power supply 110-240V available
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
-7" color touch TFT display panel is used.
-Chinese, English, Japanese are supported.
-Displays force, pressure, displacement and time.
-Can choose hardware, test, units, data, protection, curve settings.
-Supports switching between Metric and Imperial units.
-Can save up to 50 test results.
-Can save results to USB.
Can print out results under stand-alone operation mode.
-The data sampling rate is up to 1200 Hz..
-Analyze data.
-Windows system required.
-Chinese, English, Japanese, Korean, Spanish are available.
-Operation Mode: TCP/IP two-way transmission to connect with PC.
-Can import multiple test data and display at the same time.
-Supports Metric and Imperial units switching.
-Provides a flexible table for data analysis.
-Can name the data results.
-Data can be shown through the table, graph, or both.
-Data processing: save, import, list, statistical comparison, and so on.
-The X-Y axis of the graph can be set as force, elongation, displacement, time, stress, strain, and so on.
-Tensile, compression, bending, peeling and others are available.
-Supports over travel, overload, over time stop conditions as machine protection.
