Description

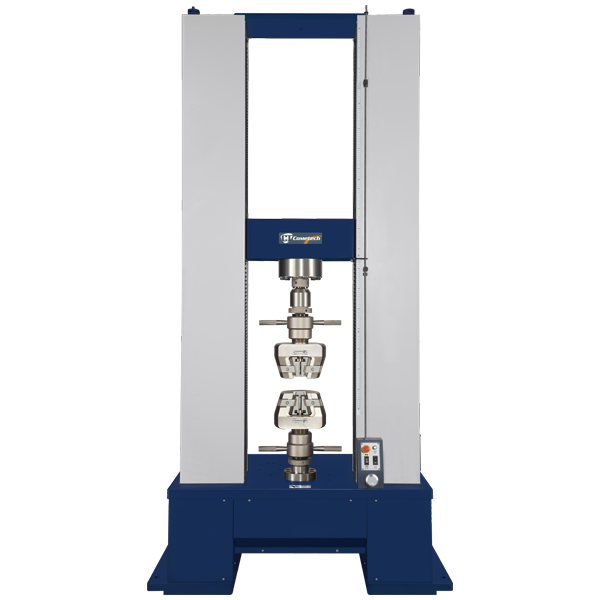

Universal Testing Machine QC-501M2F is capable of conducting material and product tests up to 300KN. The rigid and endurable structure of the universal tensile testing machine makes the test more stable and reduces damages to the machine, commonly applied to metal, composites, construction material, and other materials that require high test force.
Equipped with Cometech’s advanced M2F controller system, the tensile machine can perform creep, constant compression, cycle, multi-step test mode, which conforms to various tensile, compression, bending, peeling, and compression tests. The M2F software of universal testing machines has multi-languages and is very easy to handle. Not only does the tensile testing machine has all kind of metric units and real-time graphics but it also provides complete analysis test data which can do variety of material analysis after the test.
Low noise operations and accurate test results are guaranteed.
The 7° TFT touch screen is an optional accessory to perform tests on a standalone basis. The ups and downs of the crosshead can be slightly adjusted by jog controller, which makes the process of calibration and positioning more convenient and safe, thus preventing overload. The speed range is 0.2-375 mm/min, which conforms to various standards.
Conform to Standards
- ISO 7500-1
- ASTM E4
- JIS 475-88
- JIS B7721
- JIS B7733
- DIN 5122
- BS EN 1002-1
- BS 1610
- GB/T T228
Industry
Plastic, Textile, Metal, Architecture
Catalog Download
QC-501M2F Universal Materials Testing Machines
Testing Video
Specifications
Max. Capacity
300kN
Force Resolution
1/100,000 (31 bits)
Test Stroke(w/o grip)
1100mm
Speed Range
0.0001~330 mm/min
Data sampling rate
Max.1200Hz
Motor
Servo Motor
Dimension
145 X 66 X 235cm
Weight
1250 kg
Feature
1. Designed for creep, cycle, load/strain control, foam testing, possion's ratio, slippage, etc.
2.More than 260 software analysis available
3.Equipped with jog controller to adjust displacement precisely
4.Optional anti-collision function for protecting loadcells
5.Loadcell automatic reading, calibrated without installed on machine
Accessories
Displayer
-7" color touch TFT display panel is used.
-Chinese, English, Japanese are supported.
-Displays force, pressure, displacement and time.
-Supports test speed, direction, auto-return, stop at the break point as test conditions.
-Can analyze max. force, interval force, force at break point, and so on.
-Provides multiple stop condition settings including force, displacement, time and elongation.
-Supports over travel, overload, overtime stop protection settings.
-Can save up to 50 test results; it also supports saving to USB.
-Restore the machine to factory setting is available.
-Can calibrate with stand-alone mode.
-Supports switching between Metric and Imperial units.
QC-551 Long Extensometer
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
Software functions
-The data sampling rate is up to 1200 Hz.
-Controlled by mouse, keyboard and the up/down button on the machine to quick-adjust the position of grip.
-Windows system required.
-Chinese, English, Japanese, Korean, Portuguese, Polish, Spanish and Russian are available.
-Operation Mode: TCP/IP two-way transmission to connect with PC.
-Can import multiple test data and display at the same time.
-Supports Metric and Imperial units switching.
-Provides a flexible table for data analysis.
-Can name the data results and create a user-defined formula.
-Data can be shown through the table, graph, or both.
-Data processing: save, import, list, statistical comparison, and so on.
-The X-Y axis of the graph is adjustable including marks on the curve, interval marks, slope, and so on.
-Tensile, compression, bending, peeling, spring, creep and others are available.
-Supports over travel, overload, over time stop conditions as machine protection.
-Supports various test patterns such as reciprocation, creep, constant tensile (compression), test pause, slippage, 10-stage settings, and so on.
-Specimen modular design is for easy and quick specimen information setting.
-Test condition modular design can reduce man-made setting error.
-Supports upper and lower limits for data selection to get the key information.
-Supports multiple I/O ports for the additional test functions.
Related Machines

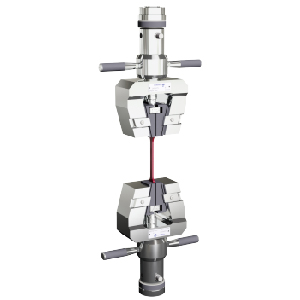

Related Grips
