Description
This machine can be with variety of cutter to cut the specimen or standard shape of specimen for do tensile strength, tear, elongation, aging and sample…etc. of test. It is suitable cutting material: paper, rubber, soft plastic and foam…etc of soft materials.
Industry
Rubber, Plastic, Textile
Application
ASTM D882 Film Tensile Test
ASTM D638 Plastic Tensile Test
ASTM D412 Rubber Tensile Test
Catalog Download
QC-603M Manual Specimen Punch
Specifications
Applicable Materials
Rubber, Soft Plastic and Leather, etc.
Maximum Force
800 KG (Actual output force may vary depending on operator-applied force.)
Press Plate Size
Upper Plate：Ø 150mm
Lower Plate：350 x 220mm (width x depth)
Standard Accessories
PE Board 1 pc
Control Method
Press the operating lever downward manually for cutting.
Optional Accessores
Cutter
(Custom-made per Specified Sample Size)
Dimensions (WxDxH)
40× 34 × 80 cm (Including Operating Lever)
Weight
45 kg
Accessories

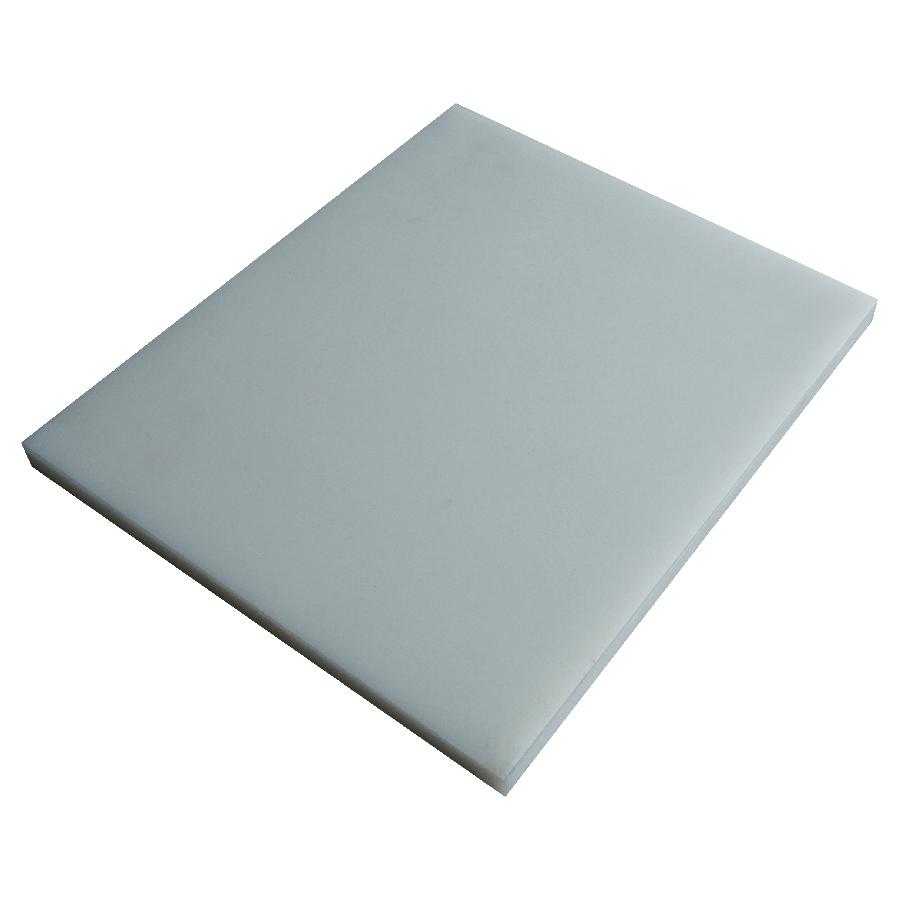

PE Board
A standard accessory for increasing the stability when cutting.
Cutter - Type A
This is an optional accessory.
A-type cutter (thick knife) has a better durability but lower precision than the B-type cutter.
Can be customized according to customer needs.
Cutter - Type B
This is an optional accessory.
B-type cutter (thin knife) has a better precision but lower durability than the A-type cutter.
Can be customized according to customer needs.
