Universal Material Testing Machine QC-548M1F series have relatively compact size and take up less space. The universal tensile tester is equipped with servo motor, ball screw and is suitable for test that requires capacity below 5kN. Test stroke can be adjusted for different dimensions of sample; different sorts of grips are available for diverse tests.
The M1F special test software of the tensile tester is compatible with the Windows system, and can perform various functions such as tensile (compression) force test, bending test, peeling test, and hold tension (compression). The software operation is simple and easy to learn, with multiple languages, various metric and English unit choices, real-time graph display, and provides complete test analysis data, report planning, complete analysis or archiving after the test is completed. This tensile testing machine can also be equipped with a display for stand-alone operation to capture effective test data quickly.
Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Package, Medical, Construction and others
ASTM D882 Film Tensile Test

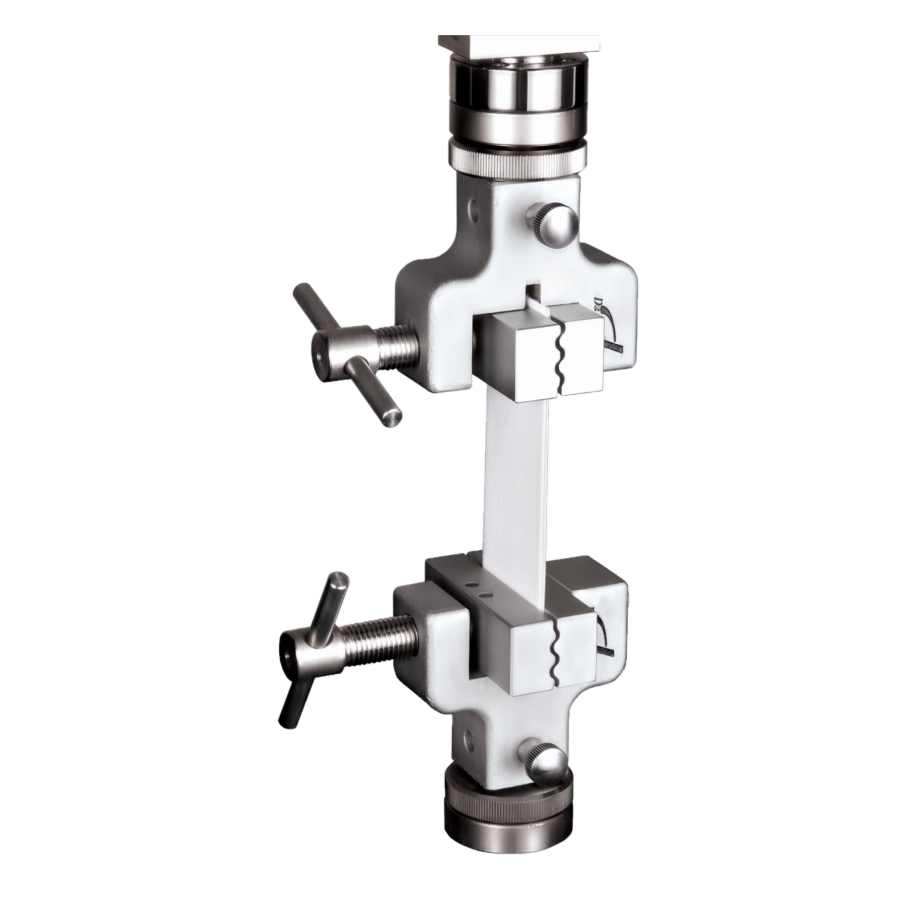

ASTM D638 Plastic Tensile Test
ASTM D412 Rubber Tensile Test

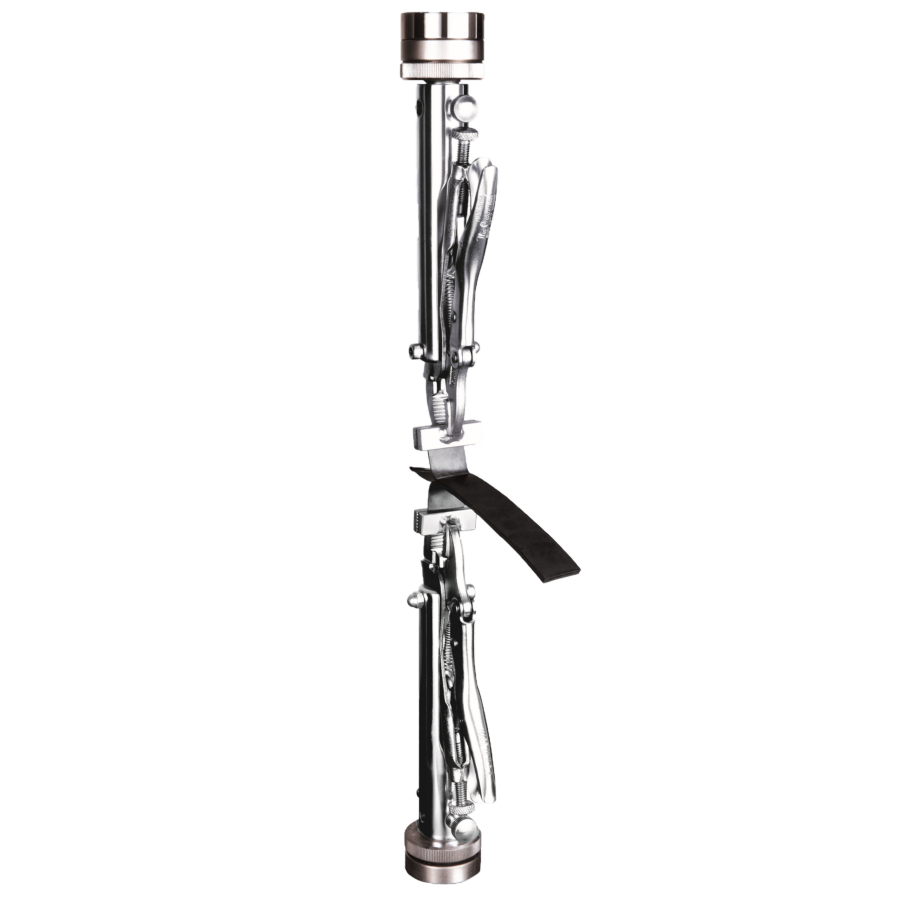

ASTM D1000 ASTM D3330 Tape Peeling Test
ASTM D575 Compression Platen With Displacement Sensor
ASTM D1894 Coefficient of Friction Test
ASTM F1269-13 | IPC TM-650 | MIL-STD-883E | AEC-Q200-006A Die Shear Testing of Electronic Packages
ISO 13934-1 Tensile properties of fabrics
Top Load Testing
Test Solutions for Bottle Industry
Probe Tack Adhesion
QC-548M1F-S Universal Materials Testing Machines
5kN
32 bits
400 mm
0.4-2000.0 mm/min
Max. 400Hz
Servo Motor
50 X 50 X 105 cm
65 kg
1.Equipped with jog controller to adjust displacement precisely
2. Optional anti-collision function for protecting loadcells
3.Loadcell automatic reading, calibrated without installed on machine
-7" color touch TFT display panel is used.
-Chinese, English, Japanese are supported.
-Displays force, pressure, displacement and time.
-Can perform test condition settings: test speed, direction, auto-return, stop at the break point.
-Can analyze max. force, interval force, force at break point, and so on.
-Provides multiple stopping point settings: force, displacement, time and elongation.
-Supports over travel, overload, overtime stop protection settings.
-Can save up to 50 test results; it also supports saving to USB.
-Restore the machine to factory setting is available.
-Can calibrate under stand-alone mode.
-Supports switching between Metric and Imperial units .
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
-The data sampling rate is up to 400 Hz..
-Controlled by mouse, keyboard and the up/down button on the machine to quick-adjust the position of grip.
-Windows system required.
-Chinese, English, Japanese, Korean, Portuguese, Polish, Spanish and Russian are available.
-Operation Mode: TCP/IP two-way transmission to connect with PC.
-Can import multiple test data and display at the same time.
-Supports switching between Metric and Imperial units .
-Provides a flexible table for data analysis.
-Can name the data results and create a user-defined formula.
-Data can be shown through the table, graph, or both.
-Data processing: save, import, list, statistical comparison, and so on.
-The X-Y axis of the graph is adjustable including marks on the curve, interval marks, slope, and so on.
-Tensile, compression, bending, spring, and other tests are available.
-Supports over travel, overload, over time stop conditions as machine protection
-Supports various test patterns such as constant tensile (compression) and 10-stage setting.
-Specimen modular design is for easy and quick specimen information setting.
-Test condition modular design can reduce human setting error.
-Supports upper and lower limits for data selection to get the key information.
-Supports multiple I/O ports for the additional test functions.
