沾水度試驗機

QC-305

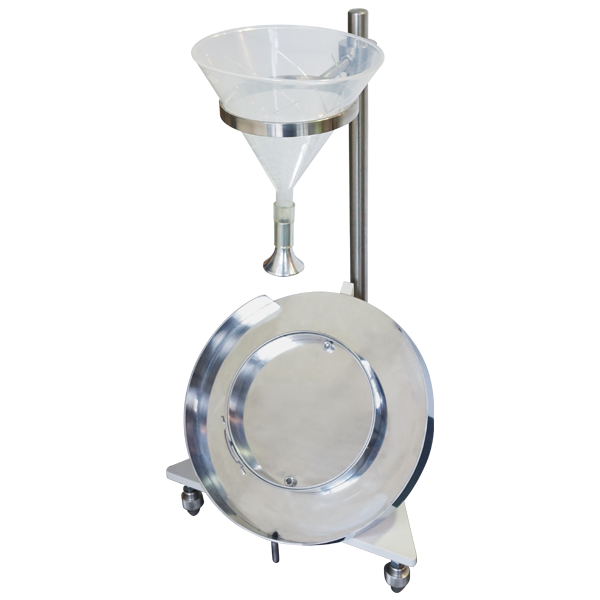

Spray Tester

Send us an Inquiry

Description

QC-305 may test water-proof or non-water-proof textile surface water resistance. Clamping textile with 45 degree angle on grip, hold open around 150mm diameter plane, putting sprayer above sample center 150mm, spraying 250 cc water from 45 degree angle to the surface of sample within 25-30 seconds. Comparing after test sample soak condition by the classification levels from standards.

Conform to Standards

  • JIS L1092
  • BS EN 24920
  • AATCC 22
  • ISO 4920
  • ASTM D1913-2000
  • ASTM D583-54

Industry

Textile

Catalog Download

QC-305 Spray Tester

Specifications


Sample Size

18 × 18 cm

Sample Ring

Ø150 mm

Tilting Angle

45º

Spray distance

6”

Water volume

250ml, Spray Time:25 ~ 30sec

Dimension

30 × 30 × 65 cm

Weight

9 kg
