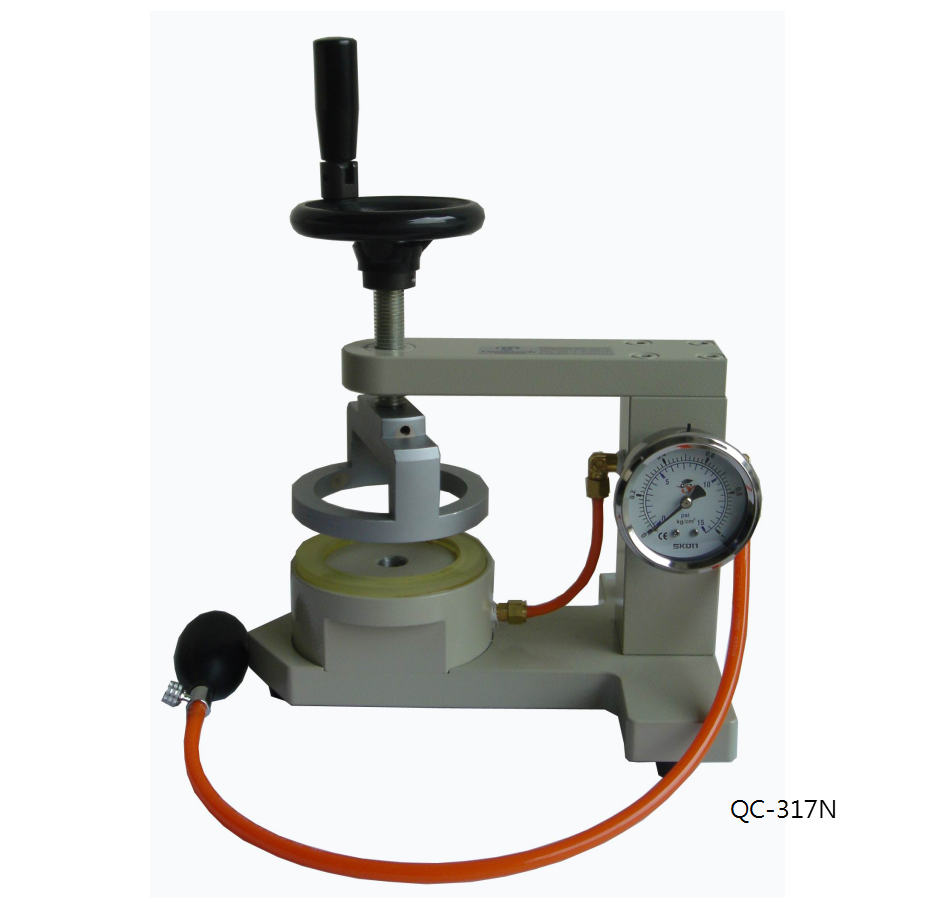

Portable Hydrostatic Head Tester Portable Hydrostatic Head Tester

QC-317M/N
Portable Hydrostatic Head Tester

Send us an Inquiry

Description

Portable design and without electricity that can proceed with test. No time and space limitations, mainly used on the spot measurement, inspect textile water-resistance ability.

The test method is divided into two kinds:
1. Pressurized ball by hand, to do the pressure → release → pressure → release, the continuous action to gradually increase the pressure within the pressurized base, and please keep pressurizing in the speed of about 1. kg / cm ²/min, please immediately stop pressurize, as specimens have three spots leaking. Record the readings on the pressure gauge, the readings are water-resistance value of this specimen.

2. Another observation method is pressurizing to specific pressure, observe after a fixed time and without any leakage that means pass.

Industry

Textile

Testing Video


Specifications


Model

QC-317M/N

Sample size

12×12cm

Test area

9.4cm

Gripping method

Manual

Pressure range

QC-317M/N:Switchable│0-2000 mmH2O (0.2 kg/c㎡│0-10000 mmH2O (1.0 kg/c㎡)

QC-317N:0-10000mmH2O (1.0 kg/cm2)

Dimension

35×20×32cm(W×D×H)

Weight

5.9kg
