Description
Torque Tester - Programmable Type is equipped with servo motor which provides steady rotation with results with high precision. The torsion test is carried out by rotating the lower clamp. This digital torque tester is equipped with software to conduct analysis on Max. Static Torsion, and can be set to perform torque test and analysis under different speed conditions. The torque curve and the torsion direction are displayed in real time during the test, and the torque value of the sample is fully recorded when the sample is rotated.
The sample clamping method adopts a customized fixture, which is customized according to the sample size provided by the user, and can be applied on bottle caps, torque wrenches, and other spare parts relating to twisting force. The height of the upper grip can also be adjusted to suit different samples.
Industry
Package, Containers, Electrical part, Motor, Bearing, Related transmission parts
Catalog Download
QC-42111 Programmable Torque Tester
Specifications
Capacity
3/ 6/ 10/ 15/ 50/ 100 N-m
Torsion Resolution
1/50,000
Torsion Unit
MN-m, kN-m, N-m, N-cm, mN-m, kgf-m, kgf-cm, kgf-mm, gf-cm, gf-mm, lbf-ft, lbf-in, ozf-in
Speed Unit
RPH, RPM, RPS
Angular Displacement Unit
deg, rad, rev
Power Type
Servo Motor
Test Speed
0.05– 30.00 RPM (180.00 – 36000.00 deg/min) Digital Input
Test Direction
Clockwise/ Counter-clockwise
Angular Resolution
0.01°
Max. Sampling Rate
1200Hz
Test Space
Width: Max. 340mm Height: Max. 400mm ( without grip)
Grips
Customzied according the specimen
Operation Mode
Operated by software
Power Supply
Single phase AC 220– 240V, 5A
Dimension
70 x 40 x 106 cm
Weight
75 Kg
Feature
1.Equipped with 7" TFT color touch display to show real time torque value and curve.
2.User-friendly setting including torque direction, test speed, stop condition, etc.
3. Record raw data during the test with USB drive
Accessories
Standard bottle cap torque clamp (optional)
Clamping Space:
Upper grip: 10-75mm
Lower grip: 10-190mm
Software functions
( Software is in standard package)
- Support multiple steps setting and cycle test
- Different data can be imported to show at a time
- Data sampling rate is at 1200Hz Max.
- Operation way: By keyboard and mouse operating the software interface
- Compatible with Windows system
- Language for selection: Chinese, English, Japanese, Korea, Spanish, Portuguese
- Operation mode: TCP/IP interface connection, and software control the operation of machine directly
- Various units including Metric and Imperial units
- Flexible form to manage database
- Free to name the data, and supporting self-determine formula data analysis

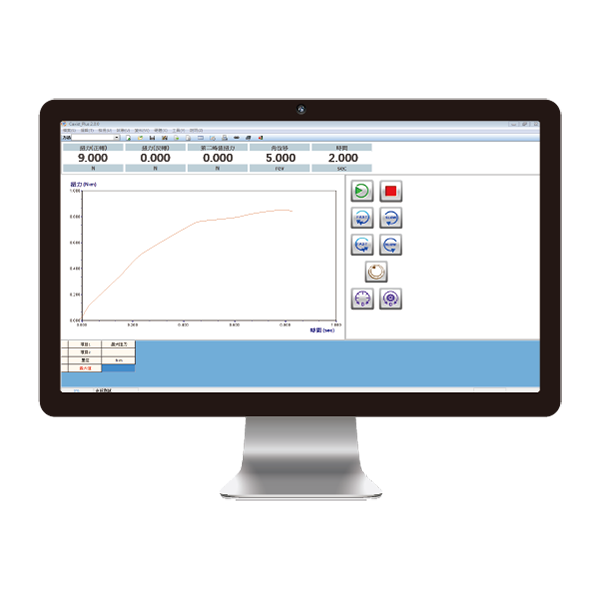

- Test page showing test curve and real time data at same time
- Data processing: save, load, list and compare data
- Supporting graph X-Y axis amount adjustment, marking for specific spot, marking for range, etc.
- Software protection: Over displacement, over load, over time, Max. torsion drop auto stop
- Test settings can be modularized to reduce human error
- Helping getting important data by self-setting upper/ lower limit of data
