The QC-507D3 is capable of performing 90° and 180° peel strength, friction force, and other light-load tests. It features a built-in 2.8" touch screen, enabling testing without the need for external software, with real-time data and curve display, and supports Wi-Fi data output.
It uses a DC motor for enhanced safety and compatibility with all voltage ranges, making it more user-friendly. Speed settings can be precisely configured digitally, and optional software is available for report editing and stepwise testing analysis. Supports multilingual display, switchable measurement units, and multiple test mode storage to meet diverse testing requirements.
Tape
ASTM D1000 ASTM D3330 Tape Peeling Test
QC-507D3 Universal Materials Tester Horizontal Type
200N
24 bits
320 mm
25~400 ±5% mm/min ( adjustable)
Max. 50 Hz
DC motor
86 × 34 × 45 cm
40 kg
1.Equipped with a 2.8" touchscreen; no extra software needed.
2.Supports 90° and 180° peeling tests.
3.Load cell position, height, and angle are adjustable depending on specimen thickness.
4.Universal power input allows flexible installation.
Supports peeling and friction tests when connected to software (fixtures optional).
1. 2.8-inch touch screen
2. Basic test function: peeling
3. Test condition memory and one-click start
4. Real-time force–displacement and force–time graphs
5. Metric and imperial unit selection
6. Stroke, force, and time protection
7. Breakpoint stop and auto return
8. Storage for 10 data sets
9. Language: Chinese, English, Japanese

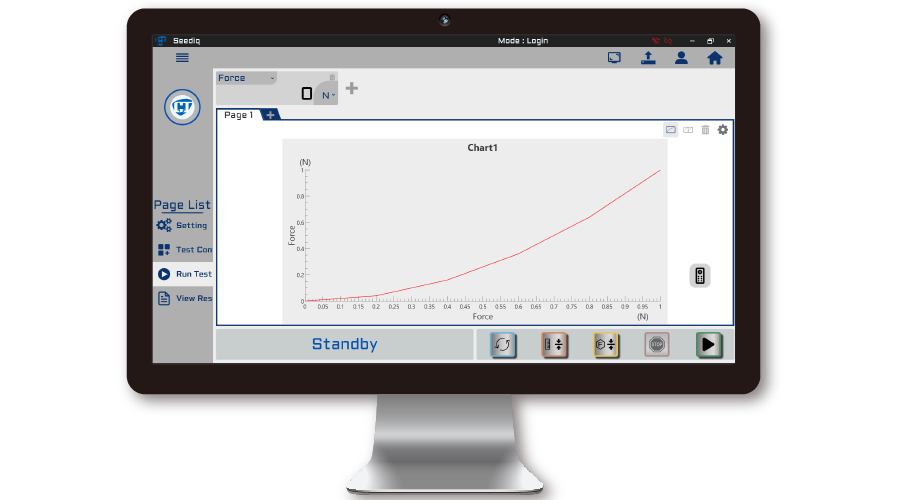

1. Data Analysis
2. Operating Platform: Windows operating system
3. Color interface with multilingual support: Chinese, English, Japanese, Korean, and Spanish
4. Operation Mode: TCP/IP interface for PC connection
5. Export multiple test results simultaneously
6. Supports both metric and imperial unit systems
7. Flexible table layout with customizable data positioning
8. User-defined labels for data fields
9. Test screen displays values, curve graphs, or both
10. Data handling: save, retrieve, list, compare, etc.
11. Curve graph parameters: force, elongation, displacement, time, stress, strain, etc.
12. Supports tensile, compression, bending, peeling, and other test types
13. Software protections: over-travel, overload, and timeout shutdown
