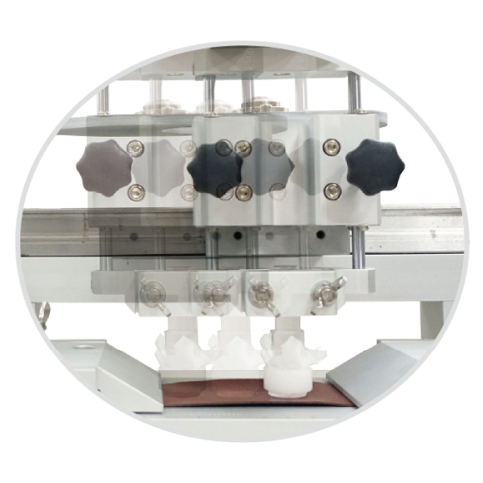

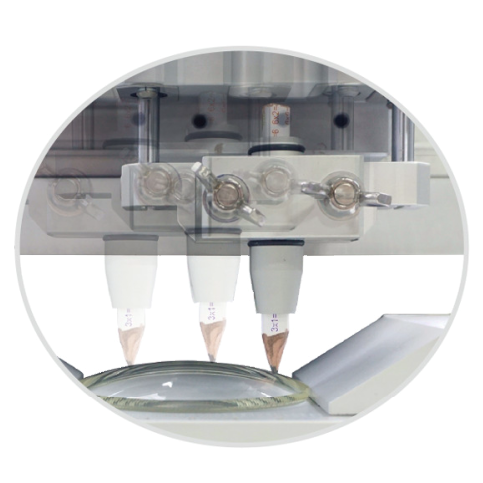

Surface Hardness Abrasion Tester Positive camber abrasion Plane abrasion

QC-622H Surface Hardness Abrasion Tester

Send us an Inquiry

Description

Surface Hardness Abrasion Tester is for measuring surface treatment such as painting, plating, coating, dyeing and finishing the design of the machine. It can use cotton, sand paper, steel wool and eraser to test specimen of wear condition. The hardness abrasion tester can cater various different standard of requirement to set condition for abrasion tests such speed, stroke, specimen appearance, abrasion head and load.

Industry

Plastic, Electronic, Textile, Print

Testing Video


Specifications


Weight set

25g x1、50g x1、100g x1、200g x1、300g x1、500g x1、1000g x1 (basic weight is 200 g)

Abrasion distance

10 ~ 100 mm adjustable (Adjustment by hand)

Max test load

Test stroke is under 50 mm, the max. load is 8kg.

Abrasion head(optional)

a.Φ6.35 mm sand paper abrasion head grip
b.Φ16 mm cotton abrasion head
c.Φ16 mm steel wool abrasion head
d. Ø6.8mm pencil/ eraser abrasion head (without pencil/ eraser)
(customized type is available)

Sample Size

Width 20 ~ 200 mm,thickness max. 50 mm

Control Panel

1 ~ 120 CPM Can be precisely set speed 1 ~ 99,999,999 times can be set. Auto-stop after the test is completed.

Power

100V~240V,50/60Hz

Dimension

65 x 35 x 40 cm

Weight

46 kg
