Discoloration Tester Discoloration Tester

QC-609A
Discoloration Tester

Send us an Inquiry

Description

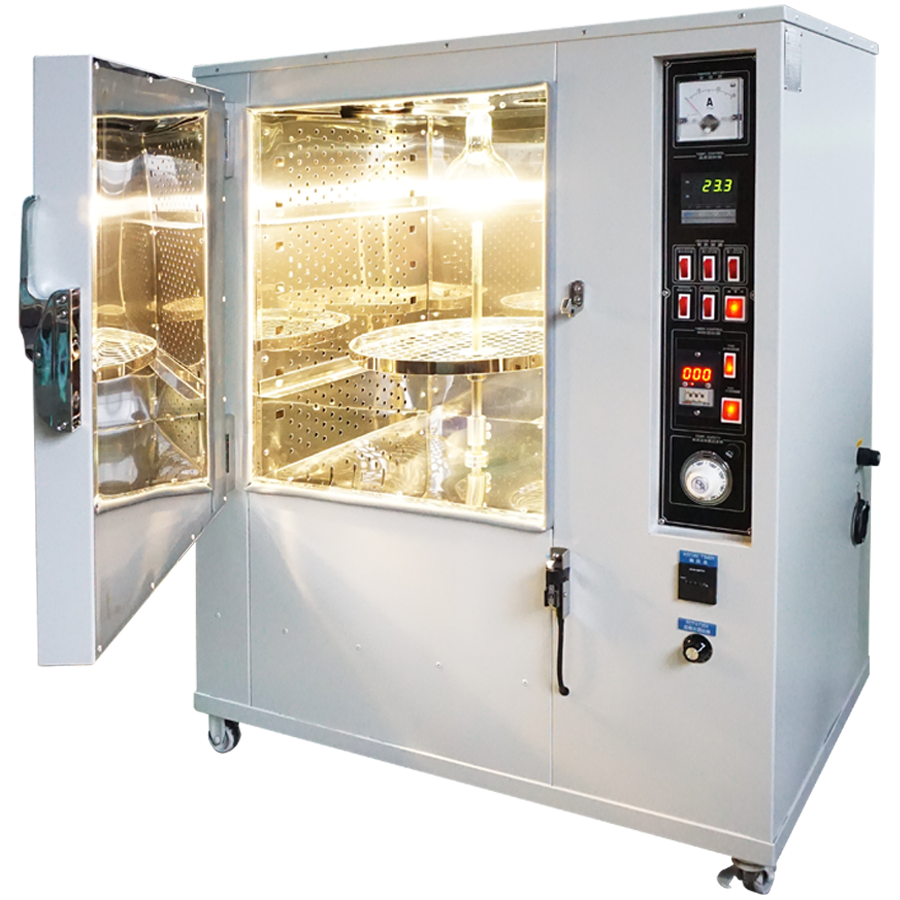

The QC-609A Discoloration Tester has oven, aging and anti-yellowing functions. A 300W UV lamp is installed inside the oven to simulate the fading or discoloring of sample caused by radiation of sunlight or the high-temperature environment in containers during transportation.
The QC-609B Discoloration Tester (Simple Type) uses two 15W light tubes as test irradiation source to see sample change condition through ultraviolet ray.

Industry

Plastic

Specifications


Model

QC-609A

Inner Chamber Size

50×50×60 cm (W×D×H)

Temperature Range

Normal 5℃ ~ 260℃ (generally 50℃)

Control Method

Electric digital temperature controller (with dual thermos protector)

Temperature Display

0.1℃

Timer

0~999 hours, manual setting, digital display, automatically stop heating

Rotary Speed of Turning Table

1~10 r.p.m. (adjustable)

UV Irradiance Level

Type of bulb OSRAM 300W. With counter for bulb’s life. Life cycle for each bulb is about 1,000 hours.

Accessories

Two pieces of shelves, adjustable height

Internal Material

SUS #304 stainless steel
Outer material: high-quality paint baking

Dimension

85×70×128cm (W×D×H)

Power Supply

Single phase, 220V/50Hz or 60Hz

Weight

100 kg

Attachment

One Warranty card, one instruction manual.
