Description
This tester is designed for conducting bending tests on electrical wires. When the internal conductor breaks due to excessive bending and causes an open circuit, the bending cycle count is recorded as the endurance index.
The tester comes standard with a touch-screen color display, capable of automatically detecting the number of cycles. It features multiple stop functions, including stop upon breakage, preset cycle stop, and pause, while recording the number of bending cycles. The machine also supports emergency stop protection for enhanced safety.
Conform to Standards
- GB/T 14471
Industry
Electronics manufacturing, wire and cable manufacturing, appliance industry
Catalog Download

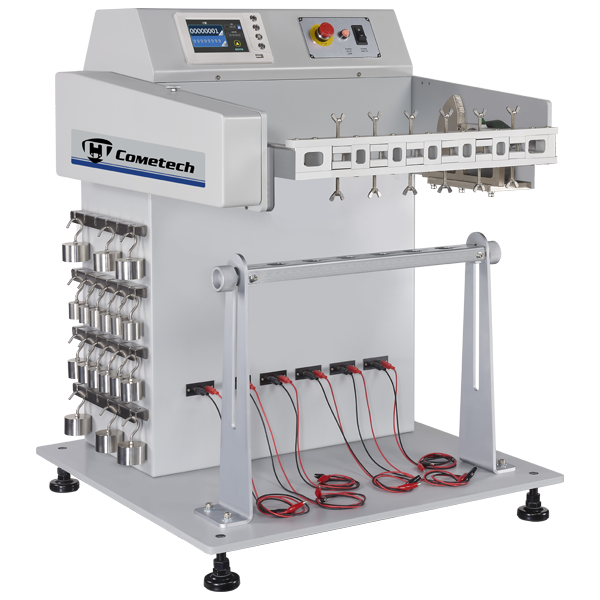

QC-659D Electric Plug／Cord Bending Tester
Specifications
Swing Angle
±30°, ±45°, ±60°, ±75°, ±90° (adjustable) with a built-in angle indicator panel for the current test angle
Stations
6 Sets
Speed
10-120 CPM(±2%) (counts per minute)
Weight
100 g, 200 g, 300 g, 500 g – one set each (6 pcs for 1 set)
Controller
1.Contains 6 individual counters and 1 master counter.
2. Maximum counts: 99,999,999 cycles
Dimension
71 x 62 x 89 cm
Weight
122 kg (without counterweight)
Power
Single-phase 100 - 240V

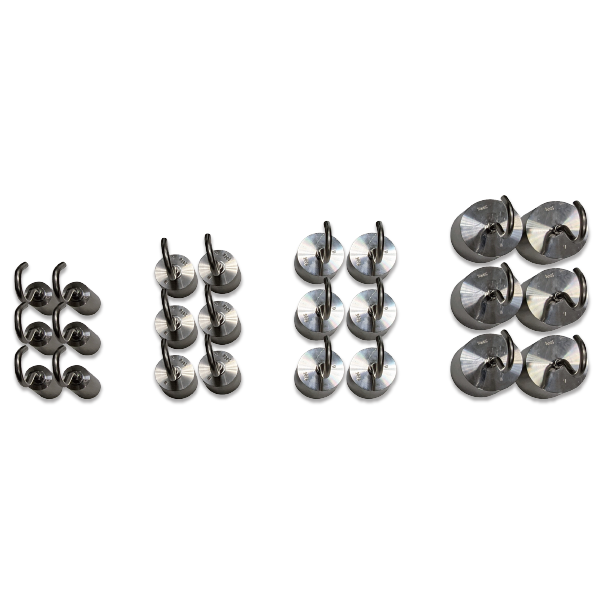

Accessories
counterweight
100 g, 200 g, 300 g, 500 g – one set each (6 pcs for 1 set)
