Dyeing Rubbing Tester

QC-319
Dyeing Rubbing Tester

Send us an Inquiry

Description

This test equipment is designed to test dyeing fastness for textile, leather and fluff. Attach dry or wet cloths to the rubbing hammer and select a 200g or 500g weight for it. Then, apply a speed at 30CPM for reciprocating rubbing. When the tester stops at a specified count, observe white cloth’s color to determine dyeing rubbing fastness of the sample.

Conform to Standards

  • JIS L0801/L0849/L1006/L1084/K6328/P8136

Industry

Textile

Specifications


Model

QC-319

Stations

6 pieces/each time

Sample size

22 × 3 cm

White cloth size

5 × 5 cm

Rubbing hammer

20 × 20 mm

Rubbing speed

30 CPM

Basic load

200g (apply a 300g weight to test at 500g )

Rubbing distance

100 mm

Rubbing area

Around 1 cm²

Timer

1~99,999 times (stop automatically when the count is finshed)

Power

Single phase, 110V/220V

Dimension

45 × 65 × 35 cm

Weight

45 kg

Accessories

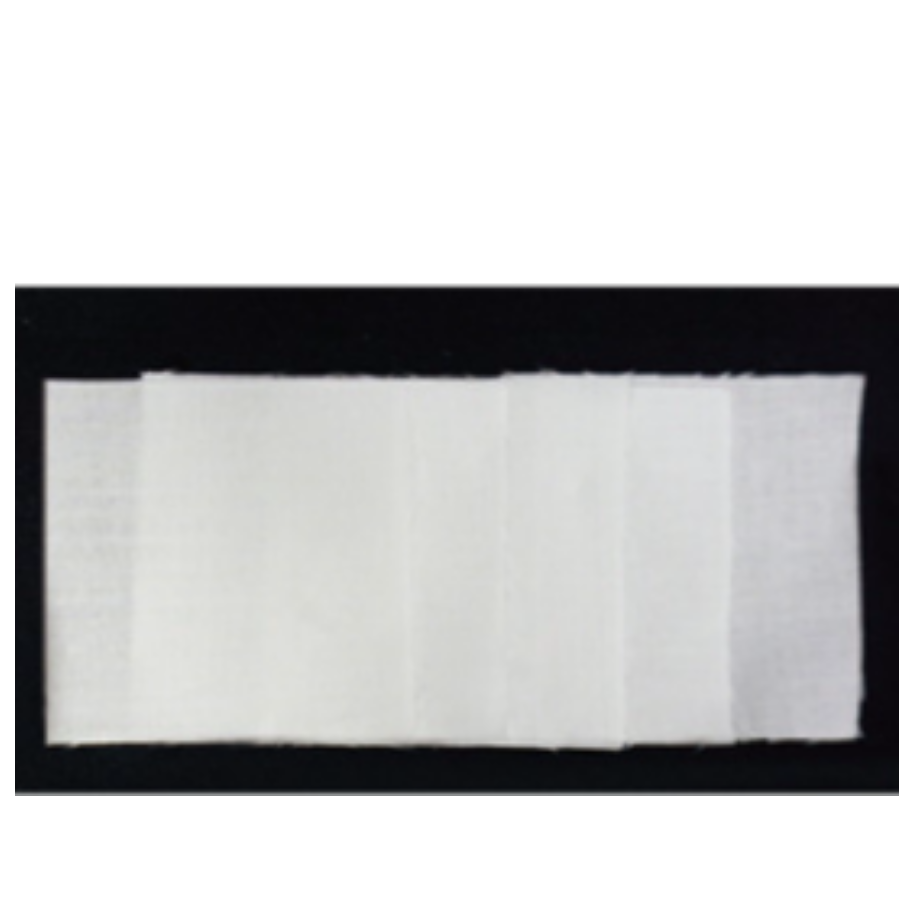

Cotton
