Compression &Deformation Tester Compression &Deformation Tester

QC-631(A)

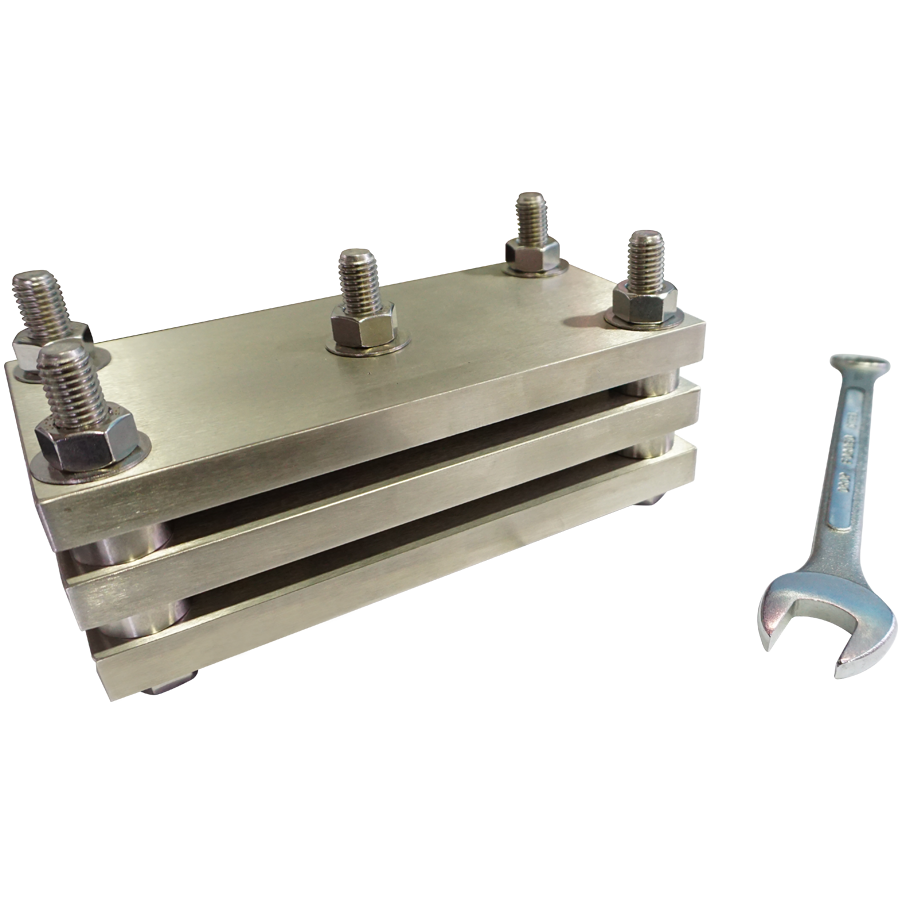

Compression and Deformation Tester

Send us an Inquiry

Description

It is use static state way to testing rubber under constant compression and exerting
heat condition to check the permanently deformation rate of the material. This test
needs to collocate with oven and Thickness Gauge.

Conform to Standards

  • ASTM D395
  • JIS K6262
  • GB/T 7759
  • ISO 815

Industry

Rubber, Plastic

Specifications


Model

QC-631/QC-631A

Compression Plate surface

QC-631: Increase the flatness of the test by grinding
QC-631A: Roughness below 0.25um

Compression plate

3 pcs (two test spaces)

Material

SUS 304 stainless steel

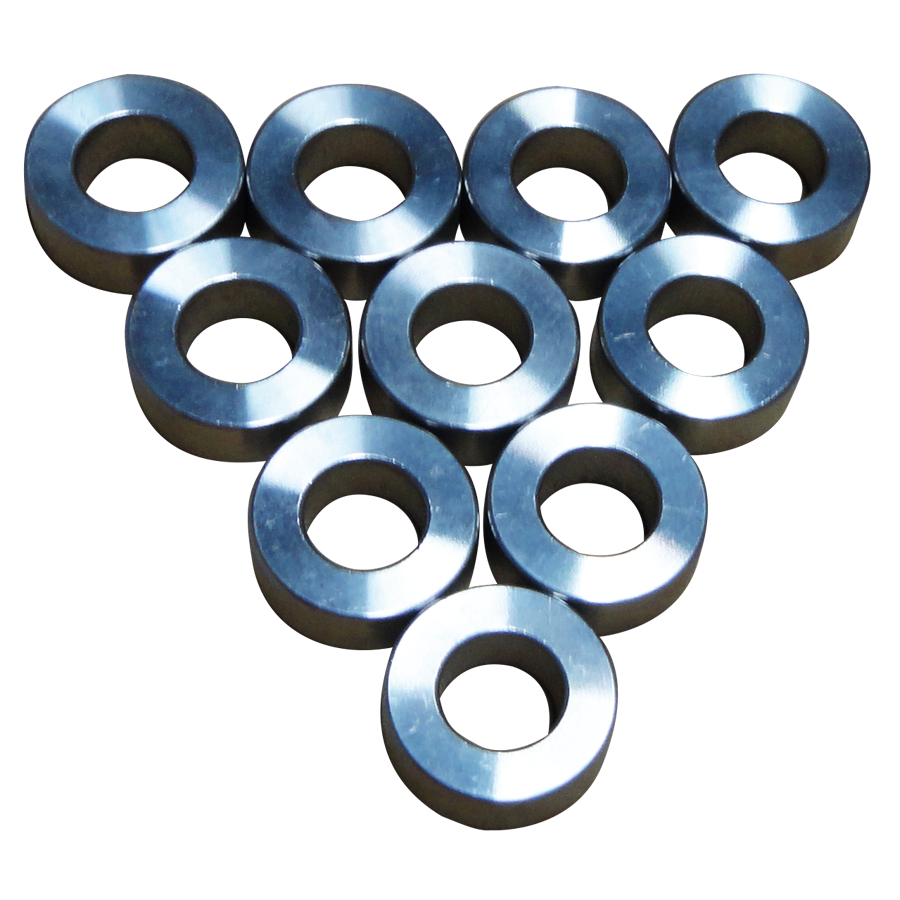

The size of Interval ring

1 set(10 pcs)
5.0, 7.62, 8.89, 9.52, 10.16 mm are available (10 interval rings of the same size will be offering for free)

Accessories

With 5 pieces of screw bolt and screw nuts

Dimension

20 × 10 × 12cm

Weight

7kg

Accessories

Interval ring

1 set(10 pcs)
5.0, 7.62, 8.89, 9.52, 10.16 mm are available
