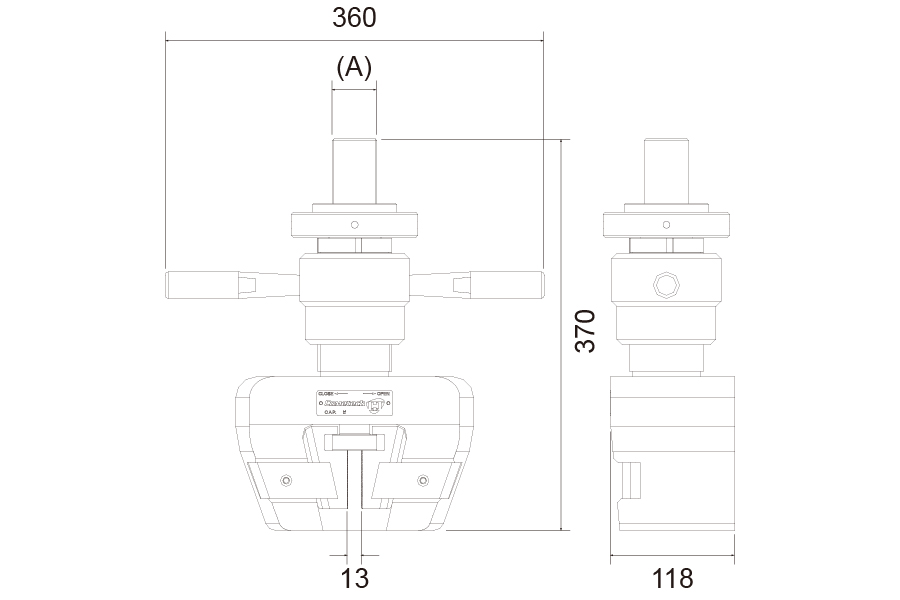

Product Grips F Series

GR-F060

Wedge Grip

Inquire this model

Description

Capacity

500kN

Jaw face width

50mm

Min. load cell

30kN

Temp. limit

0~100°C

Weight

54000g/pc

Specimen Size

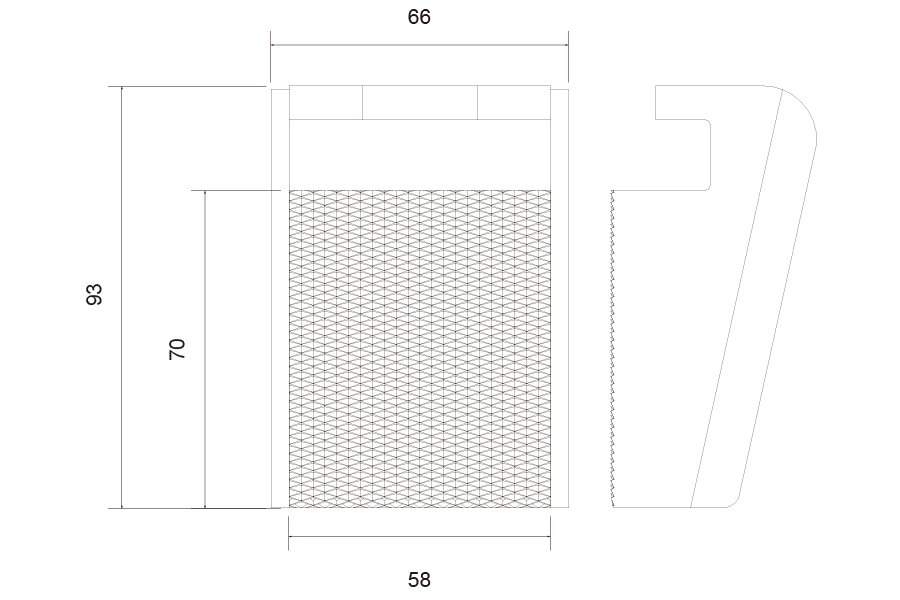

Grip Surface A thickness 1~11mm

Grip Surface B thickness 10~20mm

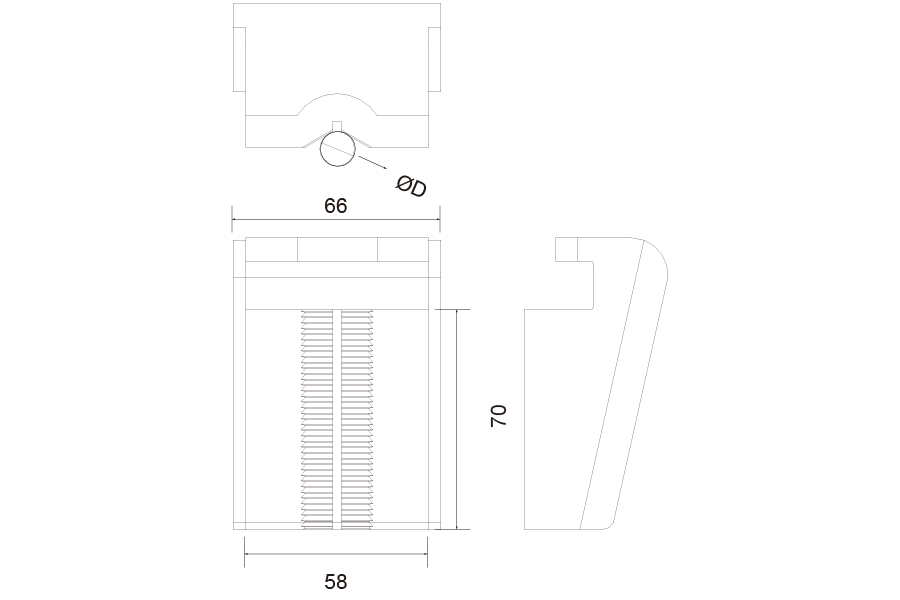

Grip Surface F diameterØ 10~20mm

Grip Surface G diameterØ 19~29mm

-

-

Industry

A/B/C grip surface suited for metal wire、metal board testing。
F/G suited for metal round bar、plastic round bar testing。
