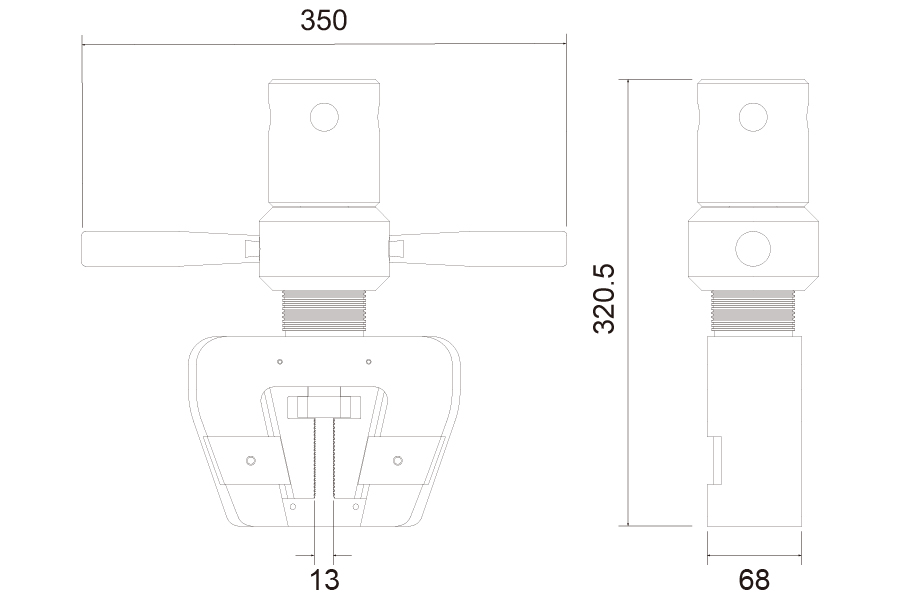

Product Grips F Series

GR-F030

Wedge Grip

Inquire this model

Description

Capacity

100kN

Jaw face width

46mm

Min. load cell

10kN

Temp. limit

-10~200°C

Weight

17522g/pc

Specimen Size

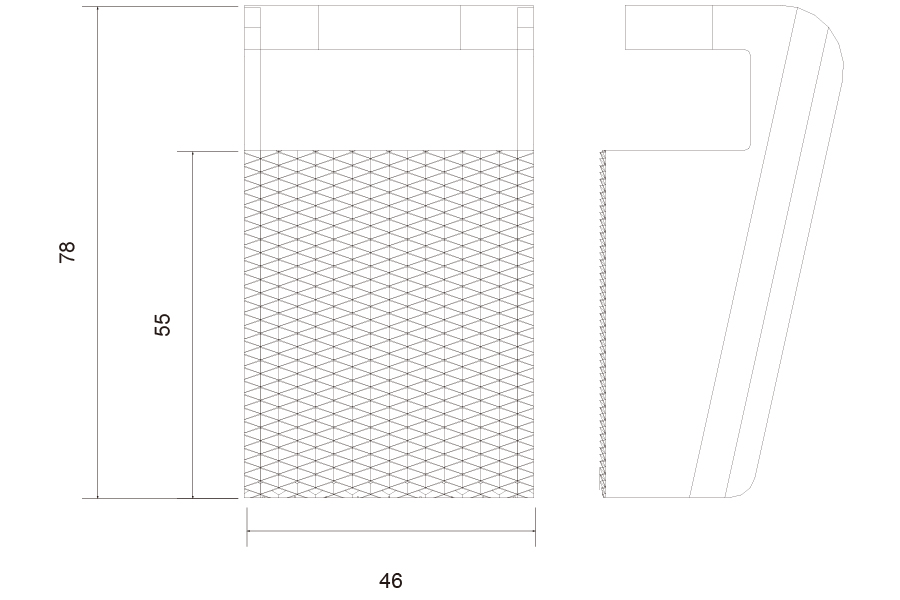

Grip Surface A thickness 0~11mm

Grip Surface B thickness 10~19mm

Grip Surface C thickness 19~30mm

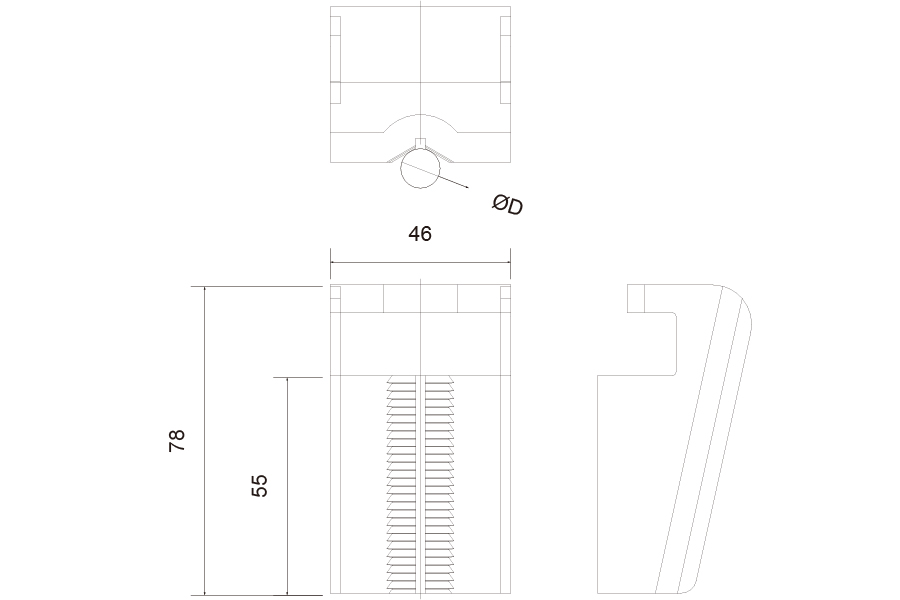

Grip Surface F DiameterØ 9~17mm

Grip Surface G DiameterØ 16~25mm

Grip Surface H DiameterØ 24~33mm

Industry

A/B/C suited for strings、board testing。
F/G/H Grip Surface suited for metal round bar、plastic round bar、round bar or tube specimen。
