Product Grips C Series

GR-C020

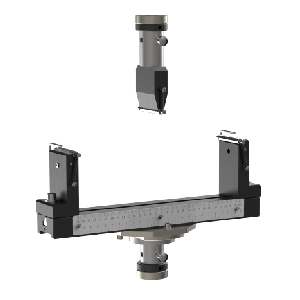

3 Points Bending / Flexure Grip

Inquire this model

Description

Capacity

20kN

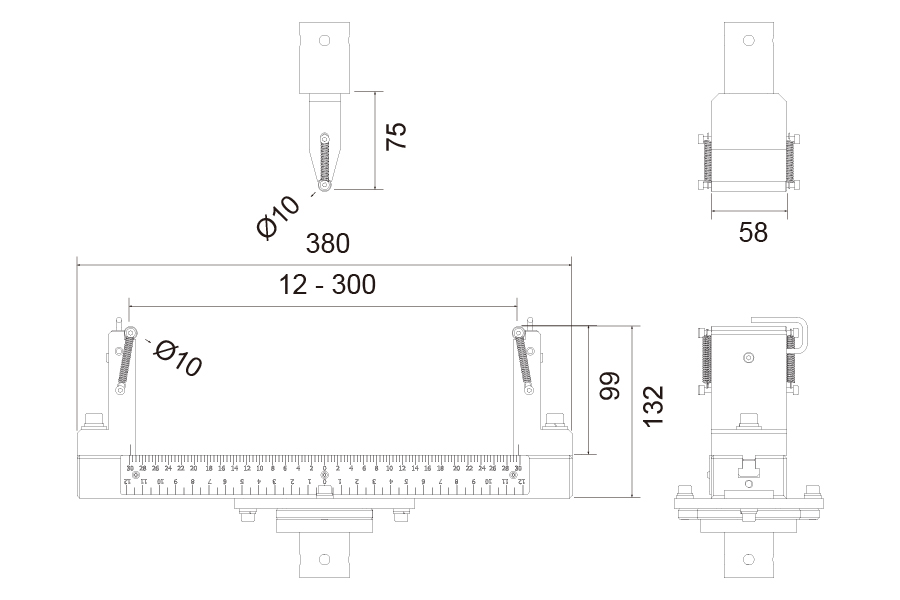

Jaw face width

58mm

Upper span

-

Down span

12~300 mm

Min. load cell

500N

Temp. limit

0~100°C

Up weight

1055g/pc

Down weight

8617g/pc

Industry

Metal､wood､glass､hard plastic specimen

Application

ASTM D790, ISO 178　 Bending test
