Product Grips B Series

GR-B050

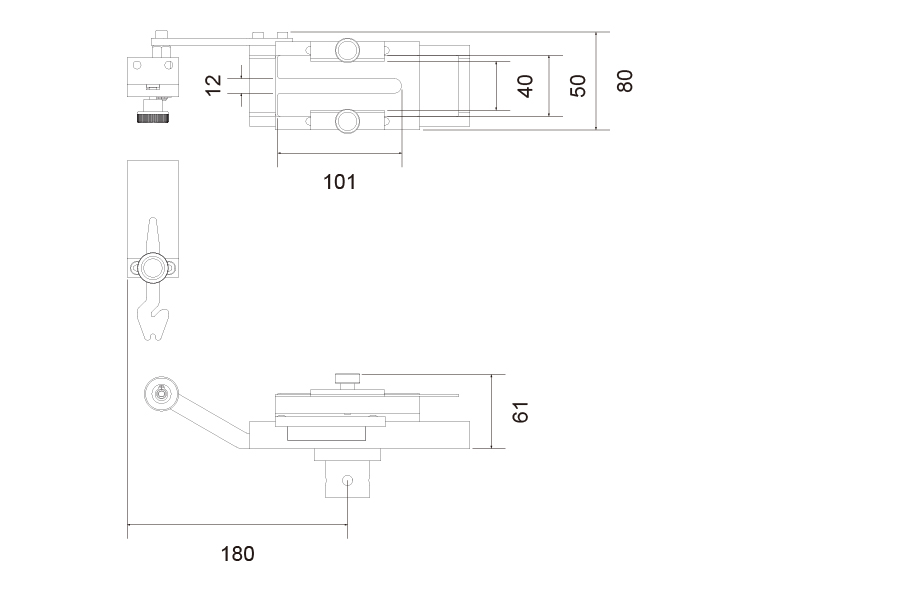

90° Peeling Grip

Inquire this model

Description

Testing angle 90°~180°

Capacity

200N

Jaw face width

5~10mm

Specimen size

thickness0.01~3mm

Min. load cell

20N

Temp. limit

0~100°C

Weight

2200g/pc

Test angle

90°

Conform to Standards

  • ASTM D3330

Industry

Duck tapes, soft and hard circuit boards

Application

ASTM D1000　ASTM D3330　 Tape Peeling Test
